Ball Valves -
Fully Welded Ball Valve
Structure: Underground Valve with Two-Pieces/Three-Pieces body welded; Side Entry/ Fire-safe/Anti-static/Anti-Blow-Out stem design; With Emergency Sealant Injectors both at Seats & Stem; Vent & Drain are equipped, Root Valve for pressure Detection .
Application: Pipeline Valve & Process Valve.Size: 2"- 60" (below 2" will be custom-made).
Operator: Lever, Gear Box, Motor Actuator, Pneumatic Actuator, Gas over Oil, Electric-Hydraulic Actuator, HIPPS.

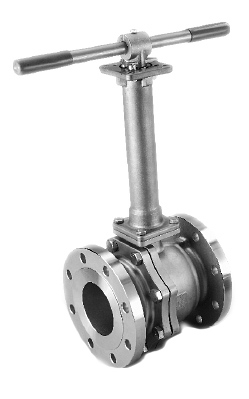

Cryogenic Ball Valve
Structure: Top Entry, Side Entry; Fire-Safe Design, Anti-Static, Anti-Blow-Out Stem Design; Casting body or Forged Body
Size: Pipeline Valve & Process Valve.
Class: ANSI CLASS 150LB – 900LB
Operator: Lever, Gear Box, Motor Actuator, Pneumatic Actuator

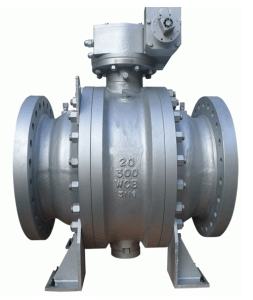

Soft Seated, Side Entry Trunnion Mounted Ball Valve
Structure: Two-Pieces/Three-Pieces Design; Side Entry/Fire-safe/Anti-static/Anti-Blow-Out Stem design; With Emergency Sealant Injectors both at Seats & Stem; Vent & Drain are equipped.
Application: For Oil & Gas Pipeline, Petro-Chemical, Chemical, Pharmacy, Food & Beverage, Water treatment etc as On/Off Valve. Together with different actuators, the valves can be used as shut-down valve/Line break valve/Automation Valve etc.
Size: 1/2"- 48"
Operator: Lever, Gear Box, Motor Actuator, Pneumatic Actuator, Gas Over Oil, Electric-Hydraulic Actuator, HIPPS.

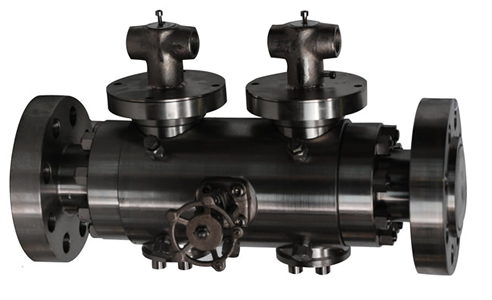

DBB Ball Valve
Structure: Side Entry or Top Entry "Twin-Ball" Ball Valve, Fire-safe, Anti-static, Anti-Blow-Out Stem design; With DBB/DIB-1/DIB-2 function; With Emergency Sealant Injectors both at Seats & Stem; Vent & Drain are equipped. The handles can be designed as Higher & Lower handle style; Left & Right handle style; Angulations handle style (refer to above picture).
Application: Oil & Gas; Petro-Chemical, Chemical, Offshore Platform.
Size: 1/2"- 24" (24" Above will be special design, custom-made).
Operator: Lever, Gear Box, Motor Actuator, Pneumatic Actuator.

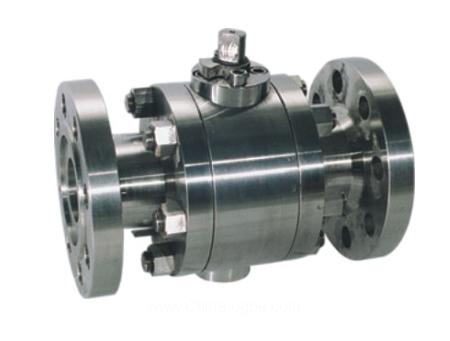

Metal Seated Ball Valve
Structure: Side Entry or Top Entry; Bolted Bonnet or Welded Bonnet; Floating or Trunnion; Fire-safe, Anti-static, Anti-Blow-Out design; Optionally, Optional Emergency Sealant Injectors both at Seats & Stem; Vent & Drain are equipped.
Application: Oil & Gas; Petro-Chemical, Coal-Chemical, Chemical, Water treatment. Together with different actuators, the valves can be used as shut-down valve/Line break valve/Automation Valve.
Size: 1/2"- 36"
Operator: Lever, Gear Box, Motor Actuator, Pneumatic Actuator, Gas over Oil, Electric-Hydraulic Actuator, HIPPS.
Top Entry Ball Valve
Structure: Top Entry, Fire-safe, Anti-static, Anti-Blow-Out Stem design; With Emergency Sealant Injectors both at Seats & Stem; Vent & Drain are equipped
Application: Oil & Gas Pipeline; For Petro-Chemical, Chemical, Pharmacy, Food & Beverage, Water treatment etc as on/Off Valve. Together with different actuators, the valves can be used as shut-down valve/Line break valve/Automation Valve; On-line maintenance/Repairing.
Size:2"- 36"
Operator: Lever, Gear Box, Motor Actuator, Pneumatic Actuator, Gas Over Oil, Electric-Hydraulic Actuator, HIPPS.

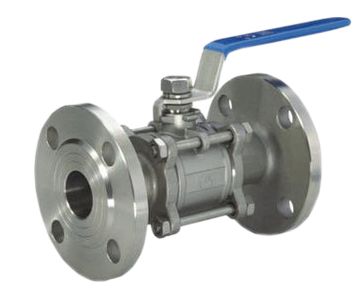

Jacket Ball Valve
Structure: Jacket design for keeping temp.
Valve type: Jacket Floating ball valve, Jacket Trunnion Mounted Ball Valve, Jacket Plug Valve
Seal: Metal or Soft.
Application: Coal-Chemical, Petro-Chemical, General-Chemical.
Operator: Manual, Gear box, Motor Actuator, Pneumatic Actuator.
3-Ways/4-Ways Soft Seated Ball Valve
Structure: L-type/T-type 3-ways ball valve; Fire safe, Anti-static design, Floating or Trunnion L-type/ Dash type 4-ways ball valve; ditto.
Application: Port Storage transportation, Chemical fluid control, Separate flow, Gathering flow, mixing flow.
Operator: Lever, Gear box, Motor-actuator, Pneumatic actuator.

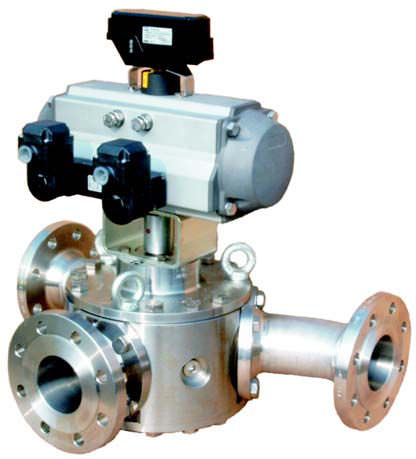

Pig gable 3-ways Ball Valve
Structure: Pig gable 3-way Ball valve, Fire-safe, Anti-static, Anti-blow-out stem design; Release Vent, Drain can be equipped as customer's requests
Application: Port storage, separate flow, together flow, mix flow.
Size: 2"-24"
Operator::Lever, Gear Box, Motro Actuator, Pneumatic Actuator
